International MV™ SERIES

Last Updated: 08/02/2022 02:07 PM

Make & Model

Detailed Specifications

MEDIUM DUTY
23,500 - 44,600 lbs., 21.5 - 54.6 lbs.
4x2 SBA, 6x4 SBA
Classic Diamond
Day Cab, Extended Cab, Crew Cab
MV607: 107" BBC, 40" BA, MV60H: 107" BBC, 40" BA
128 - 254"
Cummins® B6.7: Up to 350 hp, 1,000 lb.-ft. torque, Cummins® L9: Up to 350 hp, 1,000 lb.-ft. torque
Single, Horizontal, After-treatment Device Frame Mounted Right, Under or Back of Cab, Horizontal or Vertical Tailpipe
Clean CA available for body mounting, Heat-Treated Alloy Steel : 120,000 PSI, High Strength Low-Alloy Steel : 50,000 - 80,000 PSI
Dana Spicer: 8,000 - 14,000 lbs. Meritor: 8,000 - 14,600 lbs.
Spring Parabolic Taper Leaf: 8,000 - 14,600 lbs.
Single (4x2) : Meritor: 13,500 - 30,000 lbs., Dana Spicer: 13,500 - 30,000 lbs., Tandem (6x4) : Meritor: 34,000 - 40,000 lbs.
IROS Air Suspension Available for Single and Tandem Axle Spring Single VariRate: 13,500 - 30,000 lbs., Tandem, 4-Spring Multileaf: 34,000 - 40,000 lbs. (6x4)
Allison: 1000, 2000, 3000 Series (HS, EVS, RDS, MH) Automatic, Allison: 3000 TRV Series Automatic Eaton® Fuller: 6-, 10-speed manual Eaton® Procision: 7 speed Dual Clutch Automatic, Eaton Fuller Advantage : 10-speed Fully Automated Manual
Hydraulic Disc With Four Channel ABS, Air Brakes With ABS
40 - 140 Gallon Non Polished and Polished Aluminum
Long Life Halogen

Description

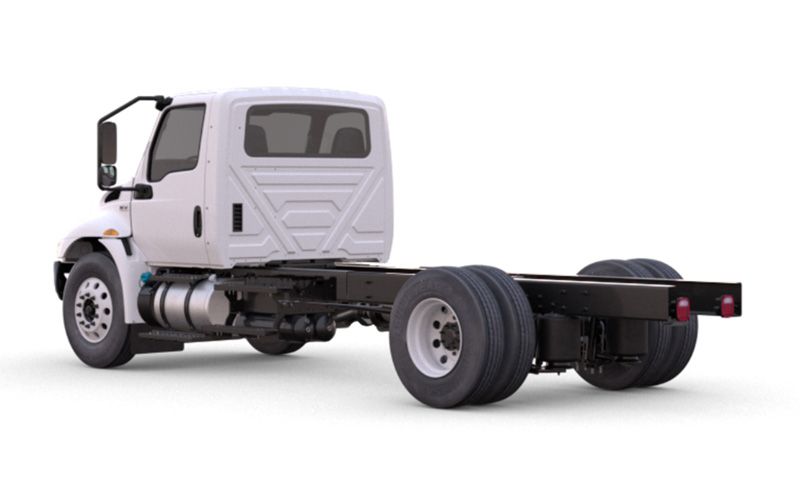

MV™
Introducing the new International® MV™ Series, a medium duty truck that’s built with everything you need to conquer your daily grind. It’s designed and engineered to set new standards for quality and productivity, with a spacious new cab interior crafted through driver input for optimal comfort, control and safety. The MV Series offers the industry-leading intelligence of the Diamond Logic® electrical system, as well as OnCommand® Connection, the industry’s first and only all-makes diagnostic system for unrivaled connectivity. With virtually limitless customization options, the MV Series provides the ideal truck for your demanding application.

Applications:
Utility
Dry Van
Digger Derrick
Recovery
Construction Dump
Fire and Emergency
